X95 SBR Cantilever Forend (AR-15 Height Rail) GEN II

SKU: MA-27550

|1 review|Add Your Review

 PLEASE NOTE:  The AR-15 Height top rail is cut to work with all calibers of Tavor X95.

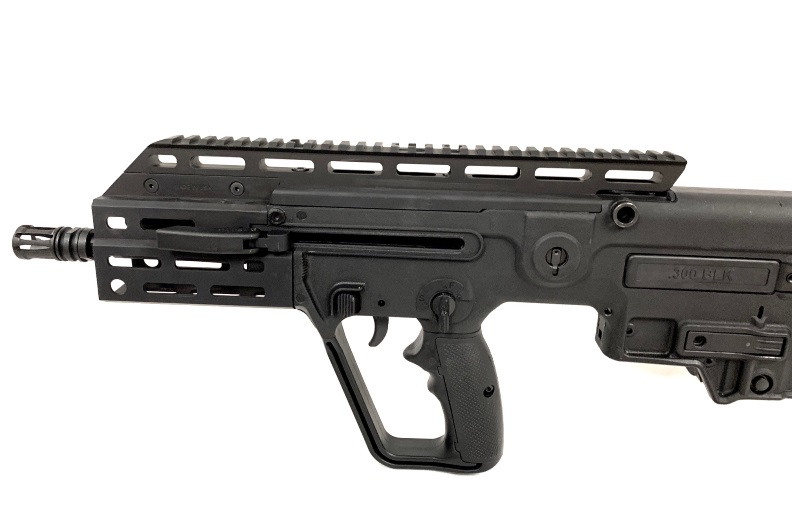

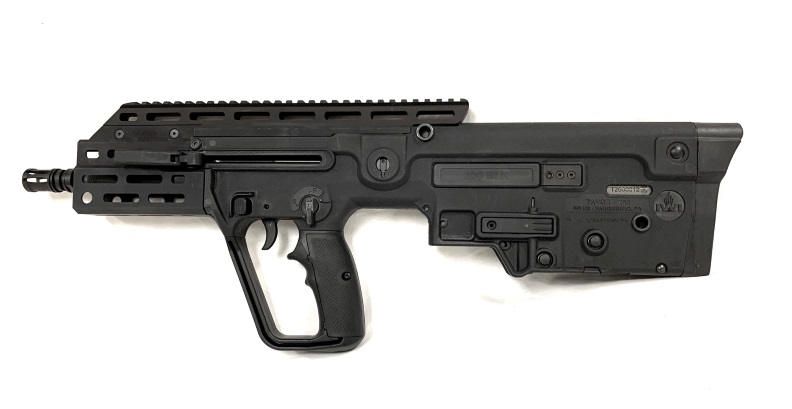

The X95 SBR Cantilever Forend offers a wealth of features at an incredible price.  To solve some of the inherent issues of how to securely mount a forend to the X95 without contacting the barrel we had to think outside the box, and the solution was a two part system.



The first component consists of a 29 slot picatinny top rail and cover plate assembly that is raised to the proper height to work with standard AR-15 iron sights and optics (i.e. most all sighting components on the market these days). In addition the top rail is cut for the 300 blackout gas adjustment access in case you are mounting on a 300 Blackout X95.



The second component is the forend itself which is 4.57″ long from front to rear, ideal for the 13″ SBR barrel, but will work with any length and caliber of barrel , features 3 rows of M-LOK (5 full slots and two partial slots) on each side plus one QD points on each side,  and  2 full and one partial slots of M-LOK on the underside.  The center row of M-LOK on the sides and the underside row on M-LOK is centered on the bore line making it much easier to zero lasers and other items that are bore line sensitive.   The top of the forend features two L-shaped tabs that engage matching slots on the top rail.  To install the forend portion just slide the forend into the slots on the top rail along the axis of the barrel, make sure the alignment tab on the underside engages the opening in the receiver,  tighten the cross bolt screw and you are ready to go with a rock solid mounted forend.  This along-the-bore-axis installation allows the additional benefit of being able to install a suppressor up to 1.5″ in diameter on the barrel and the forend can easily be slid on and off without need to remove the suppressor.



Not wanting to leave an opening where the lower plastic tab of the OEM forend engages, we have included a polymer filler block that blends perfectly with the receiver to keep everything closed up and tidy. The forend and top rail are connected via a tongue and groove rail system and are secured together with screws for stable mounting and no movement.



One last benefit- with X95 SBR Cantilever forend THE BARREL IS NOW FREE FLOATED.  No more contact of the barrel as with the OEM polymer forend and its two barrel mounted polymer support points, as the X95 SBR Cantilever Forend is completely supported by the top rail and the receiver.



Total weight of the system is 15.5 ounces.



The X95 Cantilever Forend  is Patent Pending, and manufactured of 6061 black milspec hardcoated aluminum (plus a polymer filler block) 100% right here in the USA.

$257.95

UPC: 811359021720

100% designed and manufactured in the USA

Product Details

Weight
1.1 lbs
Color

Black

Detailed Material

6061 Aluminum

Finish

Type III Milspec Black Anodizing

Product Weight

15.5 Ounces

Product Resources

Instructional Videos

Instruction Sheets

1 review for X95 SBR Cantilever Forend (AR-15 Height Rail) GEN II

  1. Greg

    This rail was perfect for my needs and i have tried them all $$$, including the other manticore products. I have a x95 that I had the barrel choped and pin welded, over the barrel suppressor mount, 16.25″ barrel 26.25″ oal w/o supressor. This includes the manticore curved but pad, also a recomend. The stock handgaurd is to narrow to fit over the mount. This one has plenty of clearance. The rail is tall enough so I can properly zero my primary arms 3x. Which I have had issues on the stock rail and not having enough elevation. The handgaurd is tight to the weapon. I had to loosen and retighten all the screws to get everything to fit right, but it looks great and had almost no flex. I have a bad habit of holding the rifle in my lap and pushing on the the hand guard to take off the supressor. There was a small amount of flex in the hand gaurd while doing this. However I could not recreat this flex without holding the rifle but bad with my legs. Overall fit and finish is excellent and fit perfectly in the hand. Manticore makes great products for my sugar. Would recomend this product to friends and family. Only way the could improve this product is if you transfer the stock night sight from Tavira rail.
